Adding an annotative text file to a pdf image

Earlier this week (10/21/2007), I described how you can add textual key/value image descriptors to the header of a pdf file.

If you like, you can add entire documents to a pdf file using the pdftk utility.

I described the pdftk utility in an earlier blog this week, but you can go directly to the pdftk site for a free download:

http://www.accesspdf.com/pdftk

We'll work from the pdftk subdirectory in Windows, and we'll use the pdf image out.pdf.

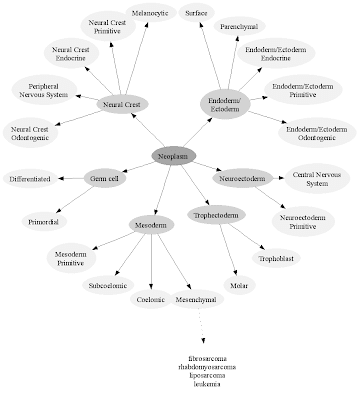

As an attachment, we'll add the neo2.dot file, which happens to contain the GraphViz specification for the out.pdf image (we could have used any file).

We put pdftk in the c:\pdftk\ subdirectory.

We enter the command line:

C:\pdftk>pdftk out.pdf attach_files neo2.dot to_page 1 output out_att.pdf

The pdftk utility will attach the text file, neo2.dot, to page 1 of the pdf image file, out.pdf, creating a new file, out_att.pdf. When we view the out_att.pdf file, it shows the same image as the out.pdf file, but the file contains a hidden attachment file, neo2.dot.

We can now delete the neo2.dot file

C:\pdftk>del neo2.dot

We can extract the neo2.dot file from the out_att.pdf file using the following pdftk command line.

C:\pdftk>pdftk out_att.pdf unpack_files output

The default output file is the attachment file, and it will have its original name, neo2.dot.

We can verify by printing out the contents of neo2.dot


C:\pdftk>type neo2.dot
digraph G {
size="10,16";
ranksep="1.90";
node [style=filled color=gray65];
Neoplasm [label="Neoplasm"];
node [style=filled color=lightgray];
EndodermEctoderm
[label="Endoderm\/\nEctoderm"];
NeuralCrest [label="Neural Crest"];
GermCell [label="Germ cell"];
Neoplasm -> EndodermEctoderm;
Neoplasm -> Mesoderm;
Neoplasm -> GermCell;
Neoplasm -> Trophectoderm;
Neoplasm -> Neuroectoderm;
Neoplasm -> NeuralCrest;
and so on


In summary, any image can be converted to a PDF file, and the descriptive text for the image can be added as an attachment to the file. You can send the file to a colleague knowing that the image file conveys textual descriptors that you have provided. At any time, the textual descriptors can be extracted from the pdf file.

- Jules Berman
